Pod Terminal¶

NextSight AI provides interactive terminal access to your pods directly from the browser.

Interactive Shell Access¶

Full terminal emulation with PTY support, WebSocket-based communication, and multi-container support

Pod Exec¶

Execute commands inside running containers:

Opening a Terminal¶

1. Navigate to Kubernetes > Pods
2. Click on a pod
3. Select Terminal tab
4. Choose container (if multiple)
5. Select shell (/bin/sh, /bin/bash)

Features¶

• Full PTY Support - Colors, cursor movement, tab completion
• Terminal Resize - Automatically adjusts to window size
• Copy/Paste - Use Ctrl+C/Ctrl+V (or Cmd on Mac)
• Session Persistence - Survives page navigation

Supported Shells¶

Debug Containers¶

For distroless or minimal containers without a shell:

What Are Debug Containers?¶

Kubernetes ephemeral containers let you attach a debug container to a running pod without restarting it.

Opening Debug Session¶

1. Click Debug on a pod
2. Select debug image
3. Optionally target a specific container

Available Debug Images¶

Example: Network Debugging¶

# Inside netshoot container
dig kubernetes.default.svc.cluster.local
curl http://service-name:8080/health
netstat -tlnp
tcpdump -i eth0

Log Viewer¶

Real-time log streaming:

Features¶

• WebSocket Streaming - Live updates
• Search - Filter by text
• Timestamps - Optional timestamp display
• Tail Lines - Configure initial lines (100-1000)
• Download - Export logs to file

Pod Events¶

For pending/failed pods, view Kubernetes events:

• Scheduling failures
• Image pull errors
• Resource constraints
• Node issues

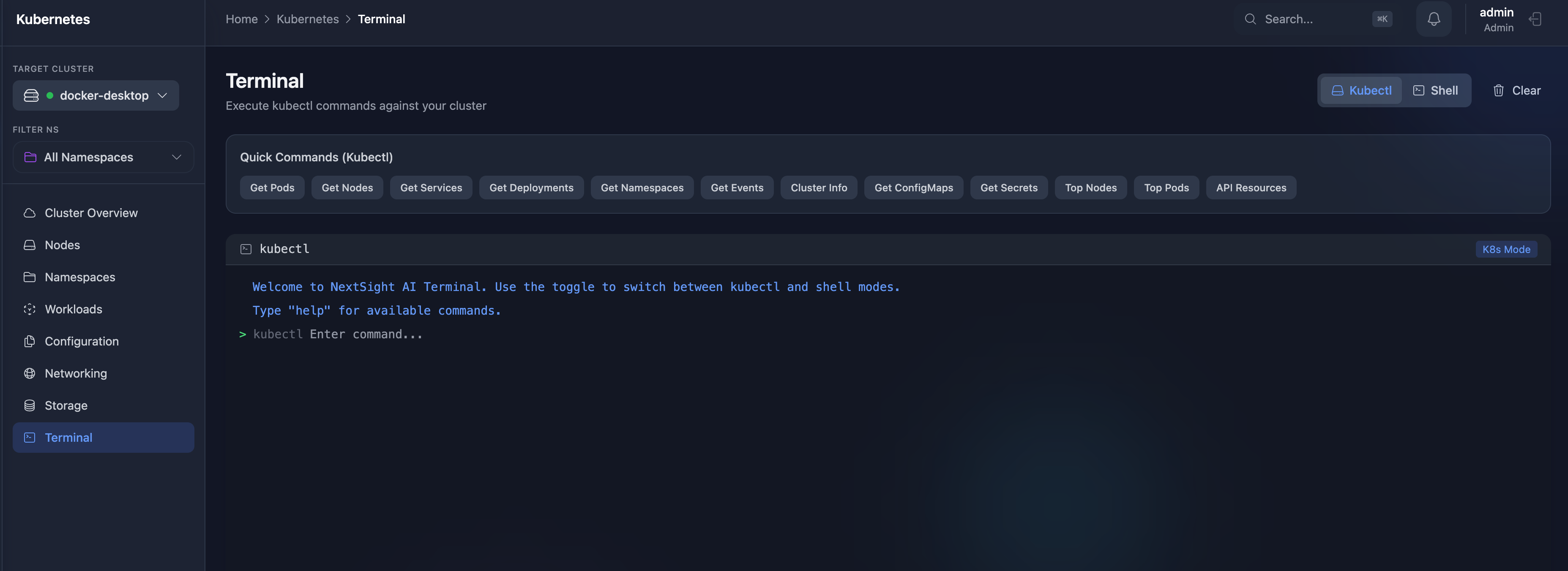

kubectl Terminal¶

Execute kubectl commands directly:

1. Go to Tools > kubectl Terminal
2. Enter commands
3. View output

Safety Features¶

Dangerous commands are blocked:

• kubectl delete namespace
• kubectl delete --all
• Custom blocklist

Common Commands¶

kubectl get pods -A
kubectl describe pod <name>
kubectl logs <pod> -f
kubectl top pods

Shell Terminal¶

Full bash access with pre-installed tools:

• kubectl - Kubernetes CLI
• helm - Helm package manager
• curl - HTTP requests
• jq - JSON processing

Blocked Commands¶

For security, these are blocked:

• rm -rf /
• sudo
• chmod 777
• Custom patterns

WebSocket Protocol¶

Message Types¶

Client → Server:

{"type": "input", "data": "ls -la\n"}
{"type": "resize", "cols": 80, "rows": 24}

Server → Client:

{"type": "output", "data": "..."}
{"type": "status", "status": "connected"}
{"type": "error", "error": "...", "code": 500}

Security¶

Input Validation¶

All inputs are validated:

• Kubernetes name format (RFC 1123)
• Shell whitelist
• Debug image whitelist

RBAC Requirements¶

Users need these permissions:

- apiGroups: [""]
  resources: ["pods/exec"]
  verbs: ["create"]
- apiGroups: [""]
  resources: ["pods/log"]
  verbs: ["get"]
